Excellent Speed for Small Office and Home
Vigor2133 series is a VPN firewall router for small office and home with broadband connection. It provides business-grade performance and features for professionals to take control of the network. The series includes models with built-in 11ac Wi-Fi and VoIP gateway.
500 Mbps
NAT Throughput
2 VPN
IPsec throughput up to 70Mbps
2 SSL VPN
Throughput up to 40 Mbps
30k Sessions
Recommended for a network of 30 hosts
Key Features
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2133 Series to the remote offices and teleworkers over the Internet. Learn more
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment. Learn more
QoS for VoIP
Give first priority to VoIP traffic to improve your call quality, and monitor VoIP statistics from the router. Setup Guide
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Central AP Management
Use the Vigor2133 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more
| Model | WAN Port | 2.4GHz Wi-Fi | 5GHz Wi-Fi | Wi-Fi Antenna | VoIP Gateway | FXS RJ-11 |
|---|---|---|---|---|---|---|

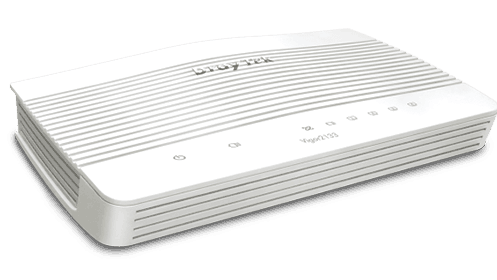

| Vigor2133 | 1000Base-TX, RJ-45 | – | – | – | – | – |
| Vigor2133n | 1000Base-TX, RJ-45 |  |
– | 2x 2.4GHz (2dBi) | – | – |

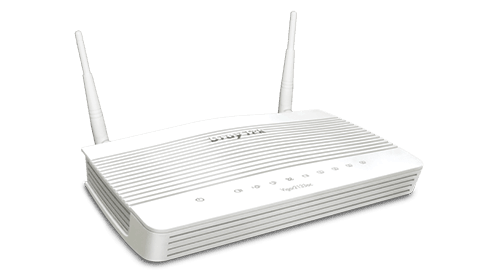

| Vigor2133ac | 1000Base-TX, RJ-45 | |
|
2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | – | – |

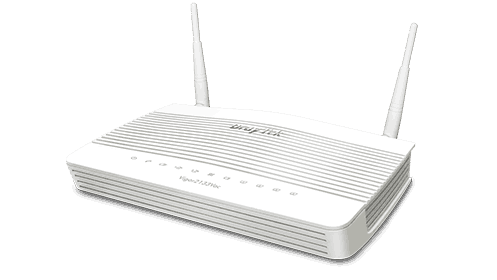

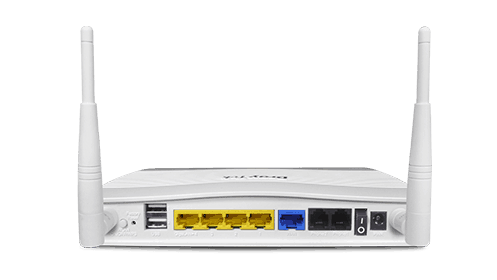

| Vigor2133Vac | 1000Base-TX, RJ-45 | |
|
2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | |
2 |

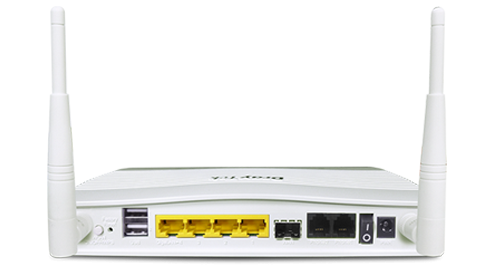

| Vigor2133FVac | 100/1000M Fiber SFP | |
|
2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | |
2 |
| Interface | |
|---|---|
| WAN Port | 1x 10/100/1000Base-TX, RJ-45 or 100/1000M Fiber SFP (FVac model) |
| LAN Port | 4x 10/100/1000Base-TX, RJ-45 |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| 2.4G WLAN | 802.11n 2×2 MIMO 300Mbps (n/ac/Vac model) |
| 5G WLAN | 802.11ac 2×2 MIMO 867Mbps (ac/Vac model) |
| FXS RJ-11 | 2 (Vac model) |
| Performance | |
| NAT Throughput | 500 Mbps |
| NAT Throughput w/ Hardware Acceleration | 900 Mbps |
| IPsec VPN Performance | 70 Mbps (AES 256 bits) |
| SSL VPN Performance | 40 Mbps |
| Max. Number of NAT Sessions | 30,000 |
| Max. Concurrent VPN Tunnels | 2 |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Multi-VLAN/PVC | |
| WAN Failover | |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | (Requires external storage) |
| VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES128, AES192, AES256 |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| Wireless LAN (wireless model) | |
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| AirTime Fairness | |
| Band Steering | (dual-band model) |
| WMM | |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| VoIP Gateway (V model) | |
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2132 Series |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 2 VigorAP |
| Physical | |
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 19.2 watts |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 410g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
All specifications are subject to change without notice.
