Vigor2765 Series

VDSL2 35b Supervectoring Modem VPN Router

OVERVIEW

    35b Supervectoring VDSL Router for Professionals

    Vigor2765 Series is a 35b Supervectoring VDSL modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It’s highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more, perfect for professional users who would like to take full control of the network. The series includes models with built-in 11ac Wave2 Wi-Fi.

    • VDSL2 35b

      Download speed up to 300 Mbps

    • 600 Mbps

      Max. NAT Throughput

    • 2 VPN

      Support IKEv2, SSL VPN, and OpenVPN

    • 50k Sessions

      Recommended for a network of 30 hosts

    Key Features

    • null

      35b Supervectoring Modem

      Integrated VDSL modem with 35b Supervectoring compatibility and VDSL2/ADSL2+ fallback.

    • null

      VPN (Virtual Private Network)

      Build a secure and private tunnel from the LAN of Vigor2765 Series to the remote offices and teleworkers over the Internet. Learn more

    • null

      Bandwidth Management

      Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

    • null

      QoS for VoIP

      Give first priority to VoIP traffic to improve your call quality, and monitor VoIP statistics from the router. Setup Guide

    • null

      DrayDDNS

      The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    • null

      Firewall & Content Filter

      Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

    • null

      Hotspot Web Portal

      Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

    • null

      DrayDDNS

      The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    • null

      Central AP Management

      Use the Vigor2765 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more

    MODELS

    Model 2.4GHz Wi-Fi 5GHz Wi-Fi Wi-Fi Antenna
    Vigor2765 – – –

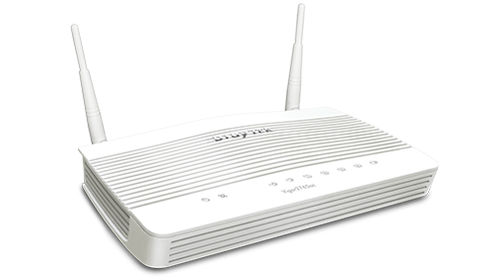

    Vigor2765ac 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz)

    SPECS

    Interface
    Fixed WAN Port 1x RJ-11
    LAN/WAN Switchable Port 1x 10/100/1000Base-T, RJ-45 (P4)
    Fixed LAN Port 3x 10/100/1000Base-T, RJ-45
    USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    2.4G WLAN 802.11n 2×2 MIMO 300Mbps (ac model)
    5G WLAN 802.11ac Wave 2 2×2 MIMO 867Mbps (ac model)
    Performance
    Max. Throughput on VDSL 300 Mbps
    NAT Throughput 600 Mbps
    IPsec VPN Performance 200 Mbps (AES 256 bits)
    SSL VPN Performance 80 Mbps
    Max. Number of NAT Sessions 50,000
    Max. Concurrent VPN Tunnels 2
    VDSL/ADSL
    VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
    VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b (Supervectoring)
    VDSL Band Plan 997, 998
    ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
    ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
    ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
    Internet Connection
    IPv4 PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    Multi-VLAN/PVC
    WAN Failover
    Connection Detection ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 8
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    DNS Security (DNSSEC)
    Multicast IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
    SMB File Sharing (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
    User Authentication Local, RADIUS, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES128, AES192, AES256
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritization
    Wireless LAN (ac model)
    Number of SSID 4 per radio
    Security WEP, WPA, WPA2, WPS
    Authentication Pre-Shared Key, 802.1x
    Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
    WDS Repeater (5GHz only)
    AirTime Fairness
    Band Steering
    MU-MIMO
    Beamforming
    WMM
    Management
    Local Service HTTP, HTTPS, Telnet, SSH, FTP, TR-069
    Config File Export & Import
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    SNMP v1, v2c, v3
    Syslog
    Central AP Management 2 VigorAP
    Physical
    Power Supply DC 12V @ 2A
    Max. Power Consumption 19 watts (ac model)
    Dimension 207mm x 131mm x 42mm
    Weight 500g (ac model)
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
    Certificate

    All specifications are subject to change without notice.
