- 12x SFP+ 1000Mbps/10Gpbs fiber slot
- 240 Gbps Switching Capacity
- 16 Mbit Buffer Size
- 8x LACP Up to 8 Link Aggregation Groups

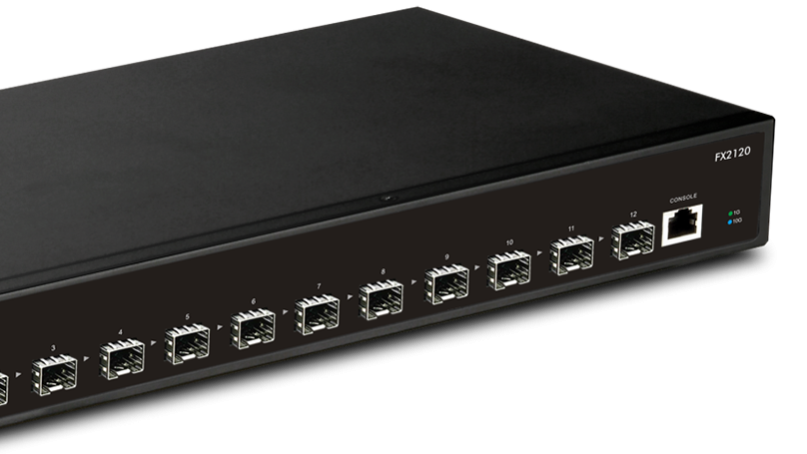

Full Fiber-10G L2+ Managed Switch
The DrayTek VigorSwitch FX2120 presents a complete 10 Gigabit switch featuring 12x SFP+ ports for uplink/downlink and 1x console port. Ideal for environments with high data transmission demands, such as ISP and enterprise networks.
Incorporating support for OpenFlow 1.3, this switch is future-proof, capable of operating in both traditional switch and SDN switch modes.
Boasting Layer 3 features, including DHCP Server and VLAN Routing, the VigorSwitch FX2120 enhances local network sustainability and efficiency independent of the gateway. Additionally, with features like IP Conflict Detection & Prevention, ONVIF Surveillance, and more, this balanced switch brings advanced capabilities to mid-sized environments.
12x SFP+
1000Mbps/10Gpbs fiber slot
240 Gbps
Switching Capacity
16 Mb
Buffer Size
8x LACP
Up to 8 Link Aggregation Groups

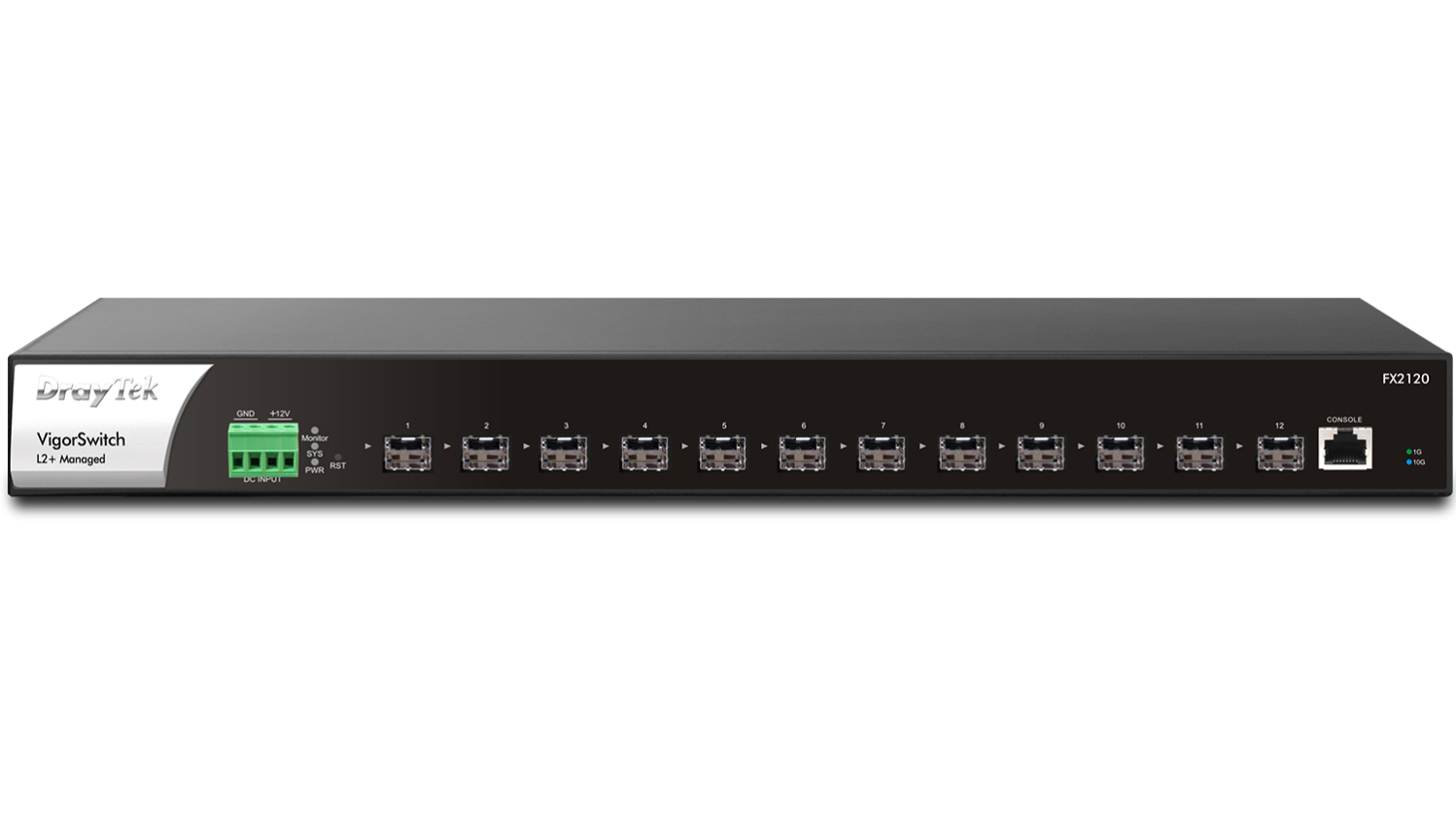

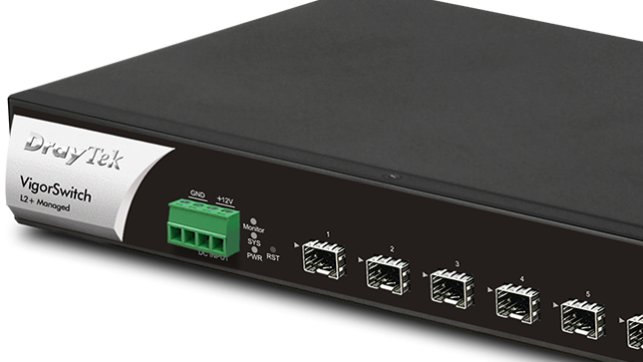

- 1 – AC Power Socket
- 2 – DC Power Socket (backup usage)
- 3 – LED Indicator
- 4 – Reset Button
- 5 – 12x 10G SFP+ Ports
- 6 – Console Port
Key Features
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch FX2120 to route the inter-VLAN traffic directly and offload the router.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Access Control
VigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
10G SFP+
Provides 10G-capable fiber SFP+ ports for aggregation or up-linking to the core switches.
IPv6 Ready
VigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
| Performance | |
|---|---|
| Buffer Size (Mbit) | 16 |
| Switching Capacity (Gbps) | 240 |
| Forwarding Rate (64 bytes)(Mpps) | 178.56 |
| MAC Address Table | 32K |
| Max. Jumbo Frame (KB) | 12 |
| L3 Routing Table | ✓ |
| Ports | |
| SFP+ (10G) | 12 |
| Console (RJ-45) | 1 |
| Standard Compliance | |
| Ethernet Standards | 802.3ab 1000Base-T |
| 802.3ae 10GBase-X | |
| 802.3x Flow Control | |
| 802.3 Auto-Negotiation | |
| 802.1q Tag-based VLAN | |
| 802.1p Class of Service | |
| 802.1d STP | |
| 802.1w RSTP | |
| 802.1s MSTP | |
| 802.3ad LACP | |
| 802.1ad QinQ | |
| 802.1x Port Access Control | |
| 802.1AB LLDP | |
| 802.3az EEE | |
| Spanning Tree | |
| STP | ✓ |
| RSTP | ✓ |
| MSTP | ✓ |
| Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | ✓ |
| VLAN | |
| Max. Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based VLAN |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Management VLAN | |
| Voice VLAN | |
| Surveillance VLAN | |
| GVRP | ✓ |
| QinQ (Basic) | ✓ |
| Layer3 Features | |
| Static Route | ✓ |
| VLAN Route | ✓ |
| DHCP Server | ✓ |
| Multicast | |
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | ✓ |
| MVR (Multicast VLAN Registration) | ✓ |
| ONVIF Surveillance | |
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance | Device Info |
| Network Settings | |
| Time Settings | |
| Reboot | |
| Reset to Factory Default | |
| QoS | |
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) | CoS |
| DSCP | |
| CoS-DSCP | |
| IP Precedence | |
| Rate Limiting | ✓ |
| Security | |
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | ✓ |
| IP Source Guard | ✓ |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | ✓ |
| DHCP Snooping | ✓ |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
| OpenFlow | |
| *The OpenFlow functionality is project-based and must be activated by DrayTek HQ. Please contact your Sales for further inquiries. | |
| Version | 1.3 |
| Table Size | 1920 |
| Management | |
| Local Service | HTTP |
| HTTPS | |
| Telnet | |
| SSH v2 | |
| Config Backup/Restore | ✓ |
| Dual Image | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| sFlow | ✓ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| LLDP-MED | ✓ |
| Mail Alert | Port Status |
| Port Speed | |
| System Restart | |
| IP Conflict | |
| Hardware Monitor | |
| Device Check | |
| ONVIF IP Cam Snapshot | |
| VigorRouter Management (SWM) | ✓ |
| VigorConnect Management (Since f/w) | V3.7.0 |
| VigorACS Management (Since f/w) | V3.7.0 |
| Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 2A |
| Backup Power Input | DC +12V |
| Max. Power Consumption (watts) | 28.9 |
| Dimension (mm) | 441 x 197 x 44 |
| Weight (kg) | 2.67 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
High Speed 10G SFP+
12x 10GbE SFP+ ports on VigorSwitch FX2120 Series fully support for uplink and downlink, it’s ready to deliver fast transfer speed to your LAN network.
- 10G backbone for ISPs
- Cloud service provider
- IoT applications
- Bandwidth-demanding entertainments
SDN Features for Edge Network
DrayTek OpenFlow Switch supports various meters and actions provides by OpenFlow 1.3, and thus helps service providers creating new services agilely.
*The OpenFlow functionality is project-based and must be activated by DrayTek HQ. Please contact your Sales for further inquiries.
Business
- Meters
- QoS for VoIP
- Rate Limit
SMB / Home
- Meters
- Rate Limit for users
- TCP/UDP policies for IPTV
- QoS for IPTV
IoTs
- Meters
- QoS for IP Cam
ONVIF-Friendly
Recognize the ONVIF devices in different VLANs, display surveillance topology, provide UI for video streaming and device maintenance.
Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.
Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.
Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.
ONVIF Snapshot Alert
Locating Not-Responding Cameras Made Easy
It’s already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.
To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.
With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.
IP Conflict Detection & Prevention
Conflict Detection
Keep an eye on the environment and notify the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can’t only detect but block the misconfigured or malicious IP host.
LAN Management
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there’s log and alert happens.
System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There’s no need to log in to each device’s management page.
Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
View More Detail
Software Management
