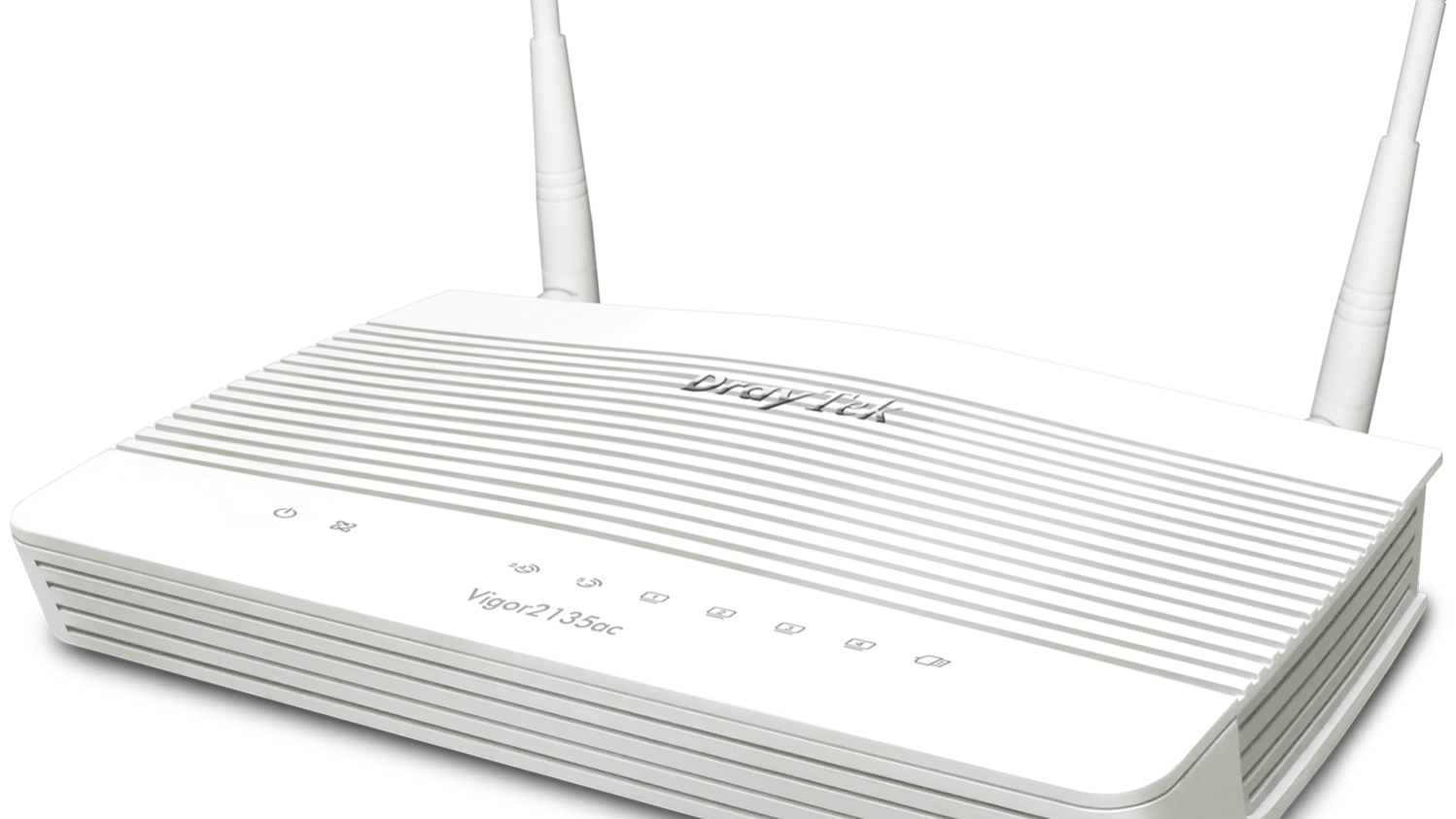

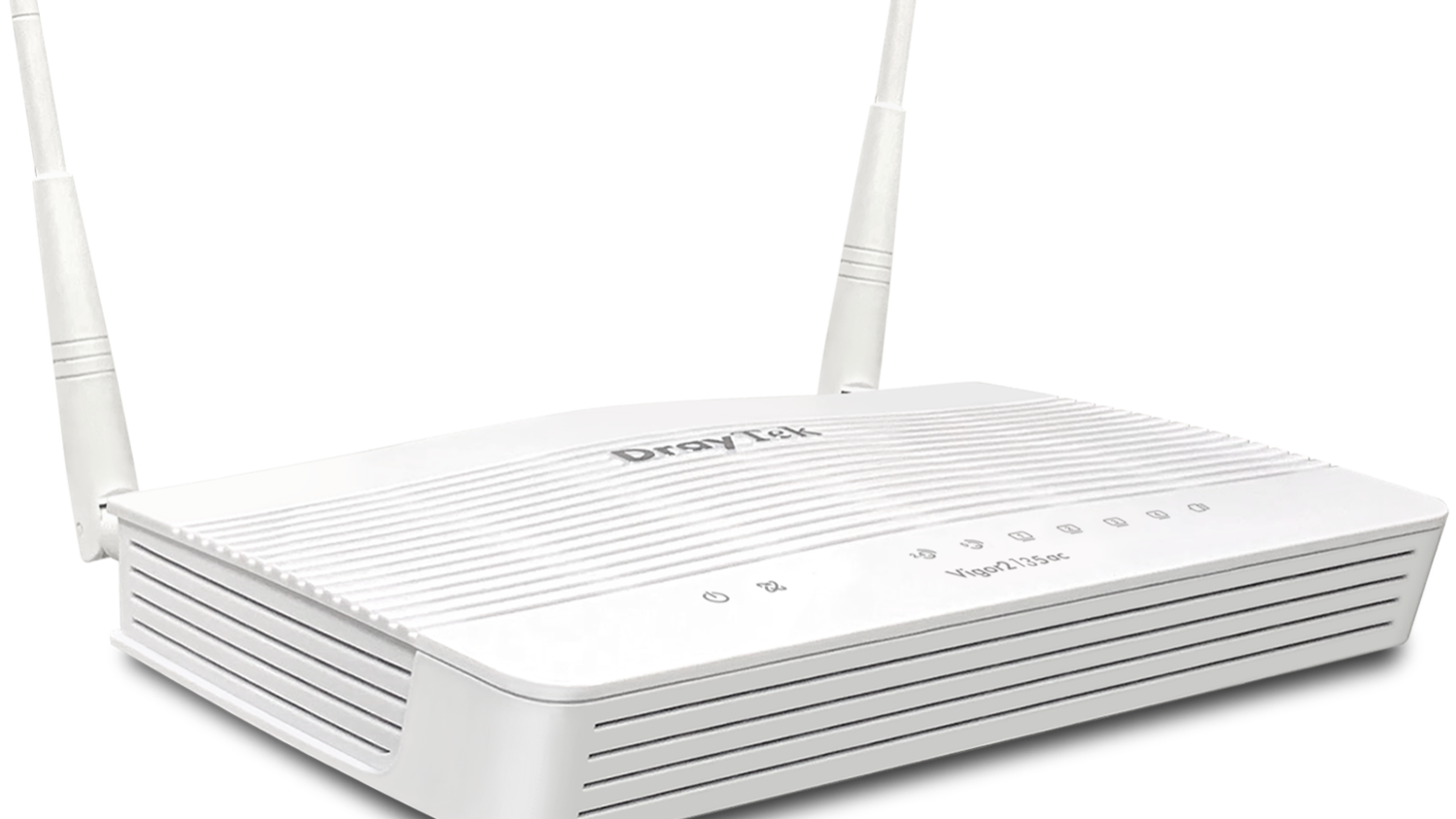

Vigor2135 Series

Gigabit Broadband Single-WAN Router for Home/SOHO

OVERVIEW

    Hardware NAT Router for Professionals

    Vigor2135 Series is a broadband firewall and a VPN router. With hardware accelerator, it delivers up to 940 Mbps performance without sacrificing bandwidth control features. It’s also equipped with business-grade features, including web content filtering, Route Policy, App-based QoS and lots more, and is perfect for professional smart homes/SOHO users who would like to take full control of their own network. The series includes models with built-in 11ac Wave 2 wireless standard and fiber WAN.

    • 1 WAN

      GbE RJ-45 or SFP Slot

    • 2 VPN

      IPsec throughput up to 150 Mbps

    • 2 SSL VPN

      Throughput up to 100 Mbps

    • 50k Sessions

      Throughput up to 600 Mbps

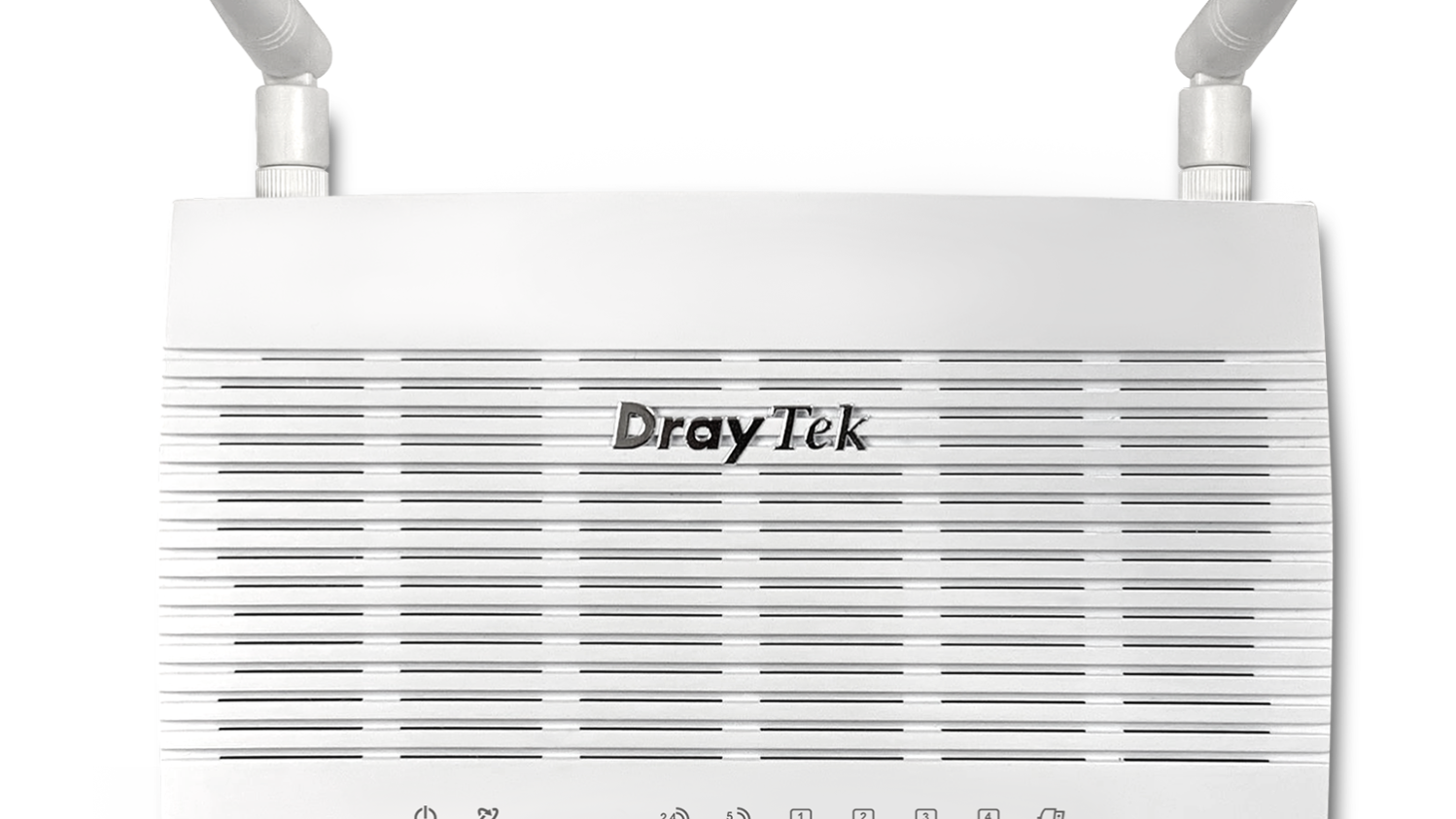

    1. Wireless Antenna (ac model)
    2. WLAN/WPS Button (ac model)
    3. Reset Button

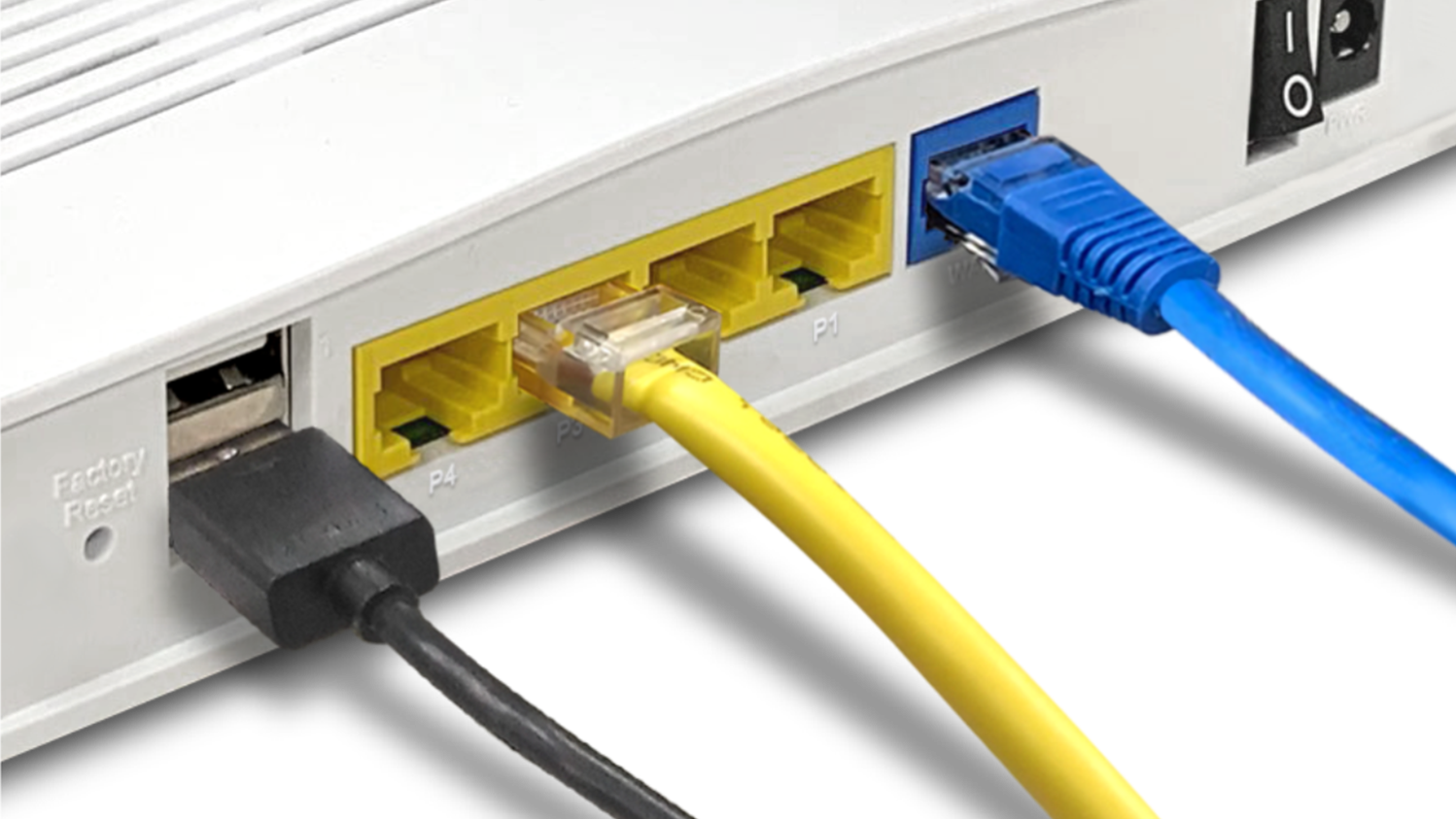

    1. 2x USB 2.0
    2. LAN Port: 4x GbE RJ-45
    3. WAN Port: 1x GbE RJ-45 or 1 x 100/1000M SFP Slot (F model)
    1. 2x FXS for VoIP (V model)
    2. Power On/Off Switch
    3. Power Input

    Key Features

    • null

      VPN (Virtual Private Network)

      Build a secure and private tunnel from the LAN of Vigor2135 Series to the remote offices and teleworkers over the Internet. Learn more

    • null

      SSL VPN

      The VPN works through firewalls providing secure remote access to any network environment. Learn more

    • null

      VPN Matcher

      Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more

    • null

      VoIP Friendly

      Vigor2135 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide

    • null

      Bandwidth Management

      Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

    • null

      DrayDDNS

      The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    • null

      Firewall & Content Filter

      Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

    • null

      Hotspot Web Portal

      Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

    • null

      Central AP Management

      Use the Vigor2135 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more

    • null

      Mesh (Wireless model only)

      Easily link to other VigorAP to expand the wireless network. Learn more

    MODELS

    Model WAN Port 2.4GHz WLAN 5GHz WLAN Wireless Antenna Wireless Mode Max. Link Rate Max. Bandwidth WDS Mesh VoIP Gateway FXS RJ11
    Vigor2135 GbE, RJ-45 – – – – – – – – – –
    Vigor2135ac GbE, RJ-45 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n
    5 GHz: 802.11 a/n/ac    		 2.4 GHz: 400 Mbps
    5 GHz: 867 Mbps    		 80 MHz
    5GHz Only
    5GHz Only    		 – –
    Vigor2135Vac GbE, RJ-45 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n
    5 GHz: 802.11 a/n/ac    		 2.4 GHz: 400 Mbps
    5 GHz: 867 Mbps    		 80 MHz
    5GHz Only
    5GHz Only    		 2
    Vigor2135FVac 100/1000M Fiber SFP 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n
    5 GHz: 802.11 a/n/ac    		 2.4 GHz: 400 Mbps
    5 GHz: 867 Mbps    		 80 MHz
    5GHz Only
    5GHz Only    		 2

    SPECS

    Interface
    WAN Port 1x Gigabit Ethernet or 100/1000M Fiber SFP (F model)
    LAN Port 4x Gigabit Ethernet
    USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    Wirelss Antenna 2x External Dipole
    Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
    (ac model)
    2.4G WLAN 802.11n 2×2 MIMO
    Up to 400Mbps Link Rate
    (ac model)
    5G WLAN 802.11ac Wave 2 2×2 MU-MIMO
    Up to 867Mbps Link Rate
    (ac model)
    FXS RJ-11 2 (V model)
    Performance
    NAT Throughput 600 Mbps
    NAT Throughput w/ Hardware Acceleration 940 Mbps
    IPsec VPN Performance 150 Mbps (AES 256 bits)
    SSL VPN Performance 100 Mbps
    Max. Number of NAT Sessions 50,000
    Max. Concurrent VPN Tunnels 2
    Internet Connection
    IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    802.1p/q Multi-VLAN Tagging
    Multi-VLAN/PVC
    3G/4G/LTE WAN with USB modem
    WAN Failover
    Connection Detection ARP, Strict ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 8
    Number of LAN Subnet 4
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    DNS Security (DNSSEC)
    IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
    SMB File Sharing (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
    User Authentication Local, RADIUS, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritization
    APP QoS
    Wireless LAN (ac model)
    Number of SSID 4 per radio band
    Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
    Authentication Pre-Shared Key, 802.1X
    WPS PIN, PBC
    WDS Repeater (5GHz Only)
    Access Control Access List, Client Isolation, Hide SSID, WLAN Scheduling
    AirTime Fairness
    Band Steering (ac model)
    MU-MIMO (5GHz Only) (ac model)
    WMM
    VoIP Gateway (V model)
    Protocol SIP, RTP/RTCP, ZRTP
    SIP Registrars 6
    Dial Plan Phone Book, Digit Map, Call Barring, Regional
    Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
    Voice Codec G.711 A/u law, G.726, G.729 A/B
    Caller ID FSK_ETSI, FSK_BELLCORE, DTMF
    Management
    Local Service HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069
    Config File Export & Import
    Config File Compatibility Vigor2132 Series, Vigor2133 Series
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    Netflow (v5, v9, IPFIX)
    SNMP v1, v2c, v3
    Syslog
    Managed by VigorACS
    Central AP Management 2 VigorAP
    Mesh Network 7 VigorAP (ac model)
    Physical
    Power Supply DC 12V @ 1-1.5A
    Max. Power Consumption 18 watts (Vac model)
    Dimension 207mm x 131mm x 42mm
    Weight 440g (Vac model)
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
    Certificate CE
    FCC
    NCC

    All specifications are subject to change without notice.

    Hardware NAT & Routing with Hardware QoS

    The accelerator supports up to 4k NAT and routing connections. With acceleration enabled, Vigor2135’s firewall performance can reach 940Mbps, while still meeting high expectation of QoS quality. You may easily prioritized business critical apps, and always keep VoIP in 1st priority.

    AP-assisted Roaming

    Making Transmission Effective

    Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.

    Resource Saving

    Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.

    No Controller Required

    Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.

    Stronger Signal Guaranteed

    By using the “Minimum RSSI with Adjacent AP” option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

    Hotspot Web Portal

    Market your business while offering free WLAN

    WLAN Marketing

    Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.

    Grow Your Email List

    Require the guest to leave contact info or social media accounts before they can use the Internet service.

    Various Authentication Type

    A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.

    3rd-Party Service Compliant

    Supports external captive portal authentication. You can keep using the WLAN marketing solution you like.

    Quota Management

    Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.

    LAN Management

    An all-in-one management platform for Vigor devices on the LAN side.

    Automatic Device Discovery

    All you need is connect the Vigor Switch/AP to the LAN side of the router, Vigor Router will then discover the devices to be managed.

    Provisioning

    Basic settings may be done on the Vigor Router, and provision to the managed VigorAP.

    Monitoring

    Vigor Router provides a centralized view of managing devices, you may always check if the managed VigorAP is online.

    System Maintenance

    You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the Vigor Router. There’s no need to log in to each device’s management page.

    Management Solution

    All-in-One Management

    • Discovery
    • Provisioning
    • Monitoring
    • Centralized Hierarchy View



    • Auto-Discovery
    • Auto-Provisioning
    • Monitoring
    • Centralized View
    • Alarm
    • Reboot VigorAP Remotely
    • Wi-Fi Client Load Balancing

    Software Management



    • Provisioning
    • Monitoring
    • Centralized Hierarchy View
    • Alarm
    • Reboot Vigor Devices Remotely
    • Scheduled Maintenance
    • Report

    • Zero Touch Deployment & Provisioning
    • Auto VPN
    • Interface Quality & SLA
    • VoIP Optimization & Monitoring
    • Application Visibility
    • Customized Hotspot Page with Multilingual
    • Hotspot Clients Analytics
    • ACS Server Load Balancing / Failover

    In-the-Box

    Vigor2766

    Antenna x 2
    (ac model)

    RJ-11 to RJ-11 Cable
    (Annex A)

    RJ-45 Cable
    (Ethernet)

    Power Adapter

    Quick Start Guide
