The Router that Suits Your Business Needs

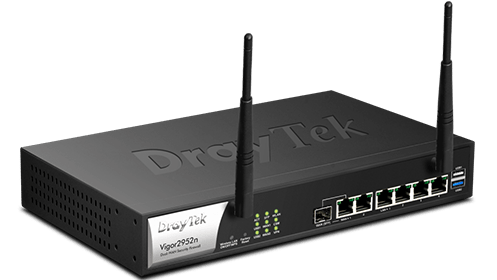

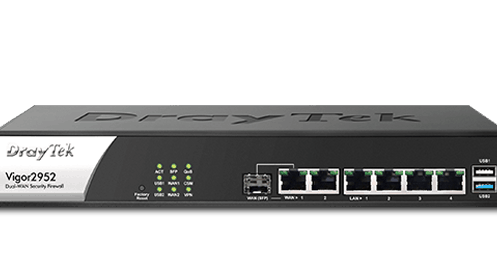

Vigor2952 series is a Dual-WAN broadband VPN firewall router designed for businesses that is looking for reliability and security in their office network. It is equipped with dual Ethernet WAN ports, with WAN 1 is usable as the SFP port, 4 Gigabit Ethernet LAN ports, and 2 USB ports for 3G/4G WAN connections or other applications. Built-in Wi-Fi is optional, and there’s Vigor2952P Series which is equipped with 4 PoE LAN ports instead.
Excellent VPN performance is a highlight of the Vigor2952 series. It supports 200 concurrent VPN tunnels, with IPsec VPN throughput up to 200 Mbps, and support of all the industry-standard VPN protocols.le.
Up to 4 WAN
Load balancing, NAT throughput up to 500 Mbps
200 VPN
IPsec VPN throughput up to 200 Mbps
50 SSL VPN
Throughput up to 90 Mbps
60k Sessions
Recommended for a network of 100 hosts
Key Features
Load Balancing
Maximize throughput and reliability by using multiple Internet connections. Learn more
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2952 Series to the remote offices and teleworkers over the Internet. Learn more
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment. Learn more
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
PPPoE Server
Use Point-to-Point connection on LAN to keep track of individual user’s traffic. Setup Guide
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Central AP Management
Use the Vigor2952 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
| Model | 2.4GHz Wi-Fi | 5GHz Wi-Fi | Wi-Fi Antenna | VoIP Gateway | FXS RJ11 | Life Line RJ11 |
|---|---|---|---|---|---|---|
| Vigor2926 | – | – | – | – | – | – |
| Vigor2926n |  |
– | 2x 2.4GHz (2dBi) | – | – | – |
| Vigor2926ac | |
|
4x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | – | – | – |
| Vigor2926Vac | |
|
4x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | |
2 | 1 |
| Interface | |
|---|---|
| Fixed WAN Port | 1x Gigabit Ethernet |
| LAN/WAN Switchable Port | 1x Gigabit Ethernet |
| Fixed LAN Port | 4x Gigabit Ethernet |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| RJ-11 Port for Voice | 2x FXS + 1x Life Line (V model) |
| 2.4G WLAN | 802.11n 2×2 MIMO 300Mbps (wireless model) |
| 5G WLAN | 802.11ac Wave 2 4×4 MIMO 1.7Gbps (dual-band model) |
| Performance | |
| NAT Throughput | 500 Mbps |
| NAT Throughput w/ Hardware Acceleration | 900 Mbps |
| IPsec VPN Performance | 80 Mbps (AES 256 bits) |
| SSL VPN Performance | 45 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN + SSL VPN | 25 |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Wireless WAN | (wireless model) |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| Wireless LAN (wireless model) | |
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | |
| Band Steering | (dual-band model) |
| MU-MIMO | (dual-band model) |
| TxBF | (dual-band model) |
| WMM | |
| VoIP Gateway (V model) | |
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2925 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 20 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| Physical | |
| Power Supply | DC 12V @ 1.5-2A |
| Max. Power Consumption | 29 watts (Vac model) |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 660g (Vac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
All specifications are subject to change without notice.
