The Router with Built-in PoE Ports

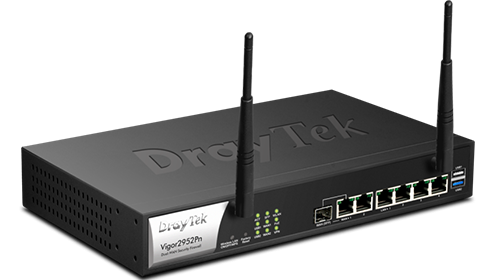

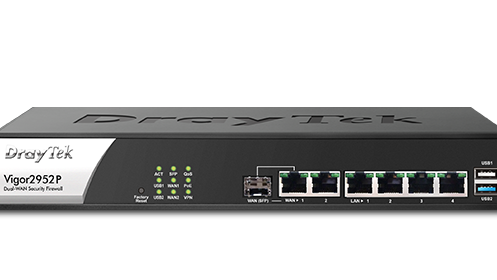

Vigor2952 series is equipped with dual Ethernet WAN ports, 4 PoE-Out Gigabit Ethernet LAN ports, which gives direct connectivity for wireless access points, IP cameras, and IP phones. It also has 2 USB ports for 3G/4G WAN connections or other applications. Excellent VPN performance is a highlight of the Vigor2952P series. It supports 200 concurrent VPN tunnels, with IPsec VPN throughput up to 200 Mbps, and support of all the industry-standard VPN protocols. Models with built-in Wi-Fi is also available. (Check Vigor2952 Series for models without PoE on LAN ports)
4x PoE-Out LAN
with a power budget of 60 watts
Up to 4 WAN
Load balancing, NAT throughput up to 500 Mbps
200x VPN
IPsec VPN throughput up to 200 Mbps
60k Sessions
Recommended for a network of 100 hosts
Key Features
PoE (Power over Ethernet)
Maximize throughput and reliability by using multiple Internet connections.
PoE Device Check
Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle.
Load Balancing
Maximize throughput and reliability by using multiple Internet connections.
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2952P Series to the remote offices and teleworkers over the Internet.
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
QoS for VoIP
Give first priority to VoIP traffic to improve your call quality, and monitor VoIP statistics from the router.
PPPoE Server
Use Point-to-Point connection on LAN to keep track of individual user’s traffic.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality Wi-Fi.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.
Central AP Management
Use the Vigor2952 Series router as a wireless controller to maintain and monitor the VigorAPs.
| Model | 2.4GHz Wi-Fi | Wi-Fi Antenna |
|---|---|---|
| Vigor2952P | – | – |
| Vigor2952Pn |  |
2x 2dBi |
| Interface | |
|---|---|
| WAN Port | 1x GbE/SFP Combo port + 1x GbE port |
| LAN Port | 4x PoE-Out GbE |
| USB Port | 1x USB 3.0 + 1x USB 2.0 |
| 2.4G WLAN | 802.11n 2×2 MIMO 300Mbps (n model) |
| Performance | |
| NAT Throughput | 500 Mbps |
| NAT Throughput w/ Hardware Acceleration | 900 Mbps |
| IPsec VPN Performance | 200 Mbps (AES 256 bits) |
| SSL VPN Performance | 90 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 200 |
| Max. Concurrent OpenVPN + SSL VPN | 50 |
| PoE | |
| Power Budget | 60 watts |
| Schedule Enable/Disable | |
| PD Device Check | |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| PPPoE Server | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping, Bonjour |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| VPN Redundancy | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| Wireless LAN (n model) | |
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, WPS |
| Authentication | Pre-Shared Key, 802.1x |
| AirTime Fairness | |
| WMM | |
| WDS | Bridge, Repeater |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069, FTP, SNMP |
| Config File Export & Import | |
| Config File Compatibility | Vigor2925, Vigor2920, Vigor2930, Vigor2950, Vigor2955 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Syslog | |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Managed by VigorACS | |
| Central AP Management | 30 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| Physical | |
| Rack Mountable | Mouting Kit Included |
| Power Supply | AC56V @1.79A |
| Max. Power Consumption | 100 watts |
| Dimension | 273mm x 171mm x 45mm |
| Weight | 1.58kg |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% (non-condensing) |
| Certificate |   |
All specifications are subject to change without notice.
