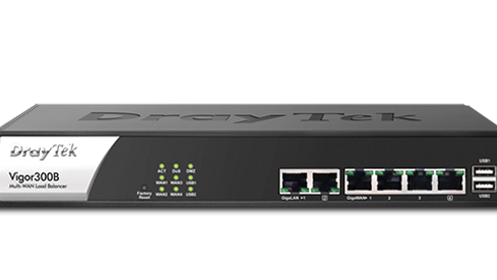

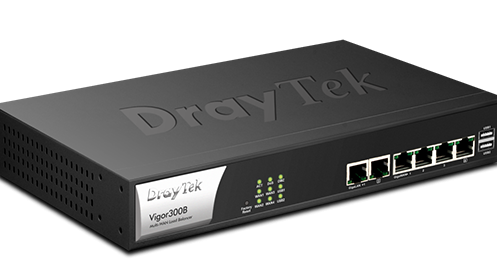

Quad-WAN High-Performance Load Balancing Router
Vigor300B is a Quad-WAN load balancing broadband router running on linux system. It is equipped with 4x Gigabit Ethernet WAN ports and 2 multi-function USB ports through which 3G/4G cellular connectivity can add, providing WAN throughput up to 1 gigabit. The high-performance router offers 100,000 NAT sessions, flexible bandwidth management features, and built-in firewall, perfect for a mid-size enterprise searching for a reliable and secure networking solution.
Key Features
Load Balancing
Maximize throughput and reliability by using multiple Internet connections. Learn more
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
PPPoE Server
Use Point-to-Point connection on LAN to keep track of individual user’s traffic. Setup Guide
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
QoS for VoIP
Give first priority to VoIP traffic to improve your call quality, and monitor VoIP statistics from the router. Setup Guide
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more
Central AP Management
Use the Vigor300B Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
| Interface | |
|---|---|
| WAN Port | 4x 100/1000Base-Tx, RJ-45 |
| (WAN4 is configurable as physical DMZ port) | |
| LAN Port | 2x 100/1000Base-Tx, RJ-45 |
| (LAN2 is configurable as monitor port or physical DMZ port) | |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Performance | |
| NAT Throughput | 900 Mbps |
| NAT Sessions | 100,000 |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP |
| IPv6 | Link Local, Static, PPP, DHCP IA NA, DHCP IA PD |
| Multi-VLAN |  |
| 3G/4G/LTE WAN with USB modem | |
| Outbound Load Balancing | IP-based, Session-based |
| Inbound Load Balancing | |
| WAN Failover | |
| Connection Detection | ARP, Ping, HTTP |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
| 802.1q VLAN | |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| PPPoE Server | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Web Portal | |
| Web Portal Authentication | Local User Profile, Guest Profile, RADIUS, LDAP, SMS PIN |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP, OSPF |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) | |
| GVRP | |
| Proxy | IGMP, LAN ARP, WAN ARP |
| SMB File Sharing | (Requires external storage) |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL Keyword, File Extension, Web Category*, QQ Filter (*: subscription required) |
| DoS Attack Defense | |
| Bandwidth Management | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Service Type |
| Hardware QoS | |
| VoIP Prioritization | |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import | |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection (Fail to Ban), Access Barrier |
| Syslog | |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
| Managed by VigorACS | |
| Central AP Management | 30 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| Physical | |
| 19″ Rack Mountable | Mouting Kit Included |
| Power Supply | DC 12V @ 1.5A |
| Max. Power Consumption | 19 watts |
| Dimension | 273 mm x 171 mm x 45 mm |
| Weight | 1.35 kg |
| Max. Power Consumption | 19 watts |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -10 to 55°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
All specifications are subject to change without notice.
