Vigor3220 Series

Quad-WAN Load-Balancing High-Performance VPN Router

OVERVIEW

Get Faster Internet Speed For Your Business

Vigor3220 series is a Quad-WAN broadband VPN firewall router designed for businesses that are looking for reliability and security in their office network. It’s equipped with 4 Ethernet WAN ports and 1 Gigabit Ethernet LAN ports. It has 2 USB ports, one of which is usable for 3G/4G WAN connections. All the WAN can active at the same time. The router will smartly distribute the sessions among all the WANs to utilize each bandwidth as much as possible, aggregate the bandwidth is also configurable to get the combined bandwidth. Excellent VPN performance is also a highlight of the Vigor3220 series. It supports 200 concurrent VPN tunnels, with IPsec VPN throughput up to 200 Mbps. Model with built-in Wi-Fi is also available.

  • 4+1 WAN

    Load balancing, NAT throughput up to 500 Mbps

  • 200 VPN

    IPsec VPN throughput up to 200 Mbps

  • 50 SSL VPN

    Throughput up to 90 Mbps

  • 100k Sessions

    Recommended for a network of 200 hosts

Key Features

  • null

    Load Balancing

    Maximize throughput and reliability by using multiple Internet connections. Learn more

  • null

    VPN (Virtual Private Network)

    Build a secure and private tunnel from the LAN of Vigor3220 Series to the remote offices and teleworkers over the Internet. Learn more

  • null

    SSL VPN

    The VPN works through firewalls providing secure remote access to any network environment. Learn more

  • null

    Firewall & Content Filter

    Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

  • null

    Bandwidth Management

    Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

  • null

    PPPoE Server

    Use Point-to-Point connection on LAN to keep track of individual user’s traffic. Setup Guide

  • null

    Hotspot Web Portal

    Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

  • null

    DrayDDNS

    The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

  • null

    Central AP Management

    Use the Vigor2952P Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more

  • null

    Central Switch Management

    Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more

MODELS

Model 2.4GHz Wi-Fi Wi-Fi Antenna

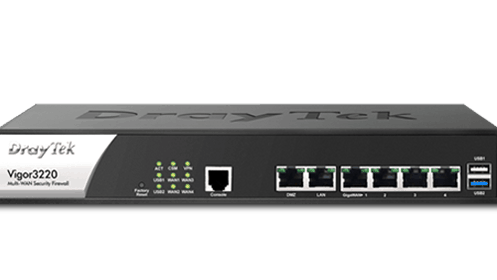

Vigor3220 – –

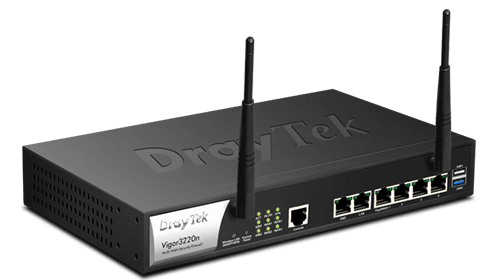

Vigor3220n 2x 2dBi

SPECS

Interface
WAN Port 4x Gigabit Ethernet RJ-45
LAN Port 1x Gigabit Ethernet RJ-45
DMZ Port 1x Gigabit Ethernet RJ-45
USB Port 1x USB 3.0 + 1x USB 2.0
Console Port 1x RJ-45
2.4G WLAN 802.11n 2×2 MIMO 300Mbps (n model)
Performance
NAT Throughput 500 Mbps
NAT Throughput w/ Hardware Acceleration 900 Mbps
IPsec VPN Performance 200 Mbps (AES 256 bits)
SSL VPN Performance 90 Mbps
Max. Number of NAT Sessions 100,000
Max. Concurrent VPN Tunnels 200 (f/w 3.8.8 or later)
Max. Concurrent OpenVPN + SSL VPN 50
Internet Connection
IPv4 PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6 PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
Multi-VLAN
3G/4G/LTE WAN with USB modem
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 8
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability
DNS Security (DNSSEC)
Multicast IGMP Proxy, IGMP Snooping, Bonjour
Local RADIUS server
SMB File Sharing (Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509
IPsec Authentication SHA-1, SHA-256, MD5
VPN Redundancy Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323, TFTP
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Wireless LAN (n model)
Number of SSID 4 per radio band
Security WEP, WPA, WPA2, WPS
Authentication Pre-Shared Key, 802.1x
AirTime Fairness
WMM
WDS Bridge, Repeater
Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
Management
Local Service HTTP, HTTPS, Telnet, SSH, TR-069, FTP, SNMP
Config File Export & Import
Config File Compatibility Vigor3200 Series
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Syslog
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Managed by VigorACS
Central AP Management 30 VigorAP
Central Switch Management 10 VigorSwitch
Physical
Rack Mountable Mouting Kit Included
Power Supply AC100-240V @ 1.0A
Max. Power Consumption 17 watts (n model)
Dimension 273mm x 171mm x 45mm
Weight 1.38 kg (n model)
Operating Temperature 0 to 45°C
Storage Temperature -20 to 70°C
Operating Humidity 10 to 90% (non-condensing)
Certificate

All specifications are subject to change without notice.
