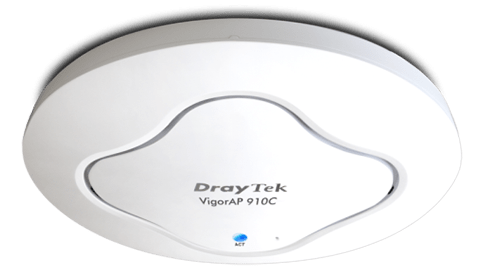

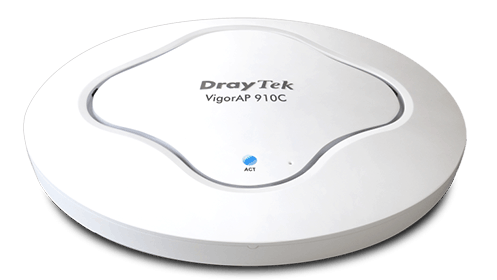

VigorAP 910C is a dual-band wireless access point designed for ceiling or wall mount. It supports stand-alone operation and can also integrate with DrayTek routers or VigorACS platform for central management.
AC1200
Delivers 867 Mbps at 5GHz
and 300 Mbps at 2.4GHz
128 Active Users
At Maximum, 64 Per Radio
1 PoE LAN Port
5x 10/100/1000M Base-T RJ-45
8 SSIDs
4 Per Radio, support 802.1q VLAN
Key Features
PoE Power Supply
Simplify the infrastructure by getting data and power through a single cable.
Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards Learn how
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down. Learn more
Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed. Learn more
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience. Learn more
Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.
Local RADIUS Server
User profile database for local and external 802.1x authentication.
Central AP Management
Manage, maintain, and monitor VigorAP 802 from the DrayTek routers. Learn more
| Interface | |
|---|---|
| LAN Port | 1x PoE Gigabit Ethernet |
| Antenna | 2x 2.4GHz Internal (2.8 dBi) 2x 5GHz Internal (4 dBi) |
| Button | 1x Factory Reset Button |
| Security Lock |  |
| Capacity | |
| 2.4GHz Peak Speed | 300 Mbps |
| 5GHz Peak Speed | 867 Mbps |
| Max. Number of Concurrent Active Clients | 128 (64 per radio band) |
| WLAN | |
| 2.4GHz Standard | IEEE 802.11b/g/n 2×2 MIMO |
| 5GHz Standard | IEEE 802.11a/n/ac 2×2 MIMO |
| 2.4GHz Operating Mode | AP, Universal Repeater, AP Bridge Point-to-Point, AP Bridge Point-to-Multipoint, AP Bridge WDS |
| 5GHz Operating Mode | AP, Universal Repeater, AP Bridge-WDS |
| Fast Roamding (WPA2/802.1x) | |
| AP-Assisted Roaming | |
| Airtime Fairness | |
| Band Steering | |
| Max. Number of SSID | 8 (4 per radio band) |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | |
| Client Isolation | |
| Access Control List | |
| Bandwidth Limit per Client | |
| Client Numer Limit | Per radio, Per SSID |
| Connection Time Control | |
| Mobile Device Management | |
| WMM | |
| Application | |
| Built-in RADIUS Server | |
| RADIUS Proxy | PEAP, EAP-TLS |
| DHCP | DHCP Server, DHCP, Client, DHCP Relay Agent |
| Static IP | |
| MAC Clone | |
| 802.1q VLAN | |
| Schedule | Auto-Reboot, Wi-Fi Up/Down, LED On/Off |
| Management | |
| Local Service | HTTP, HTTPS, Telnet |
| Configuration | Stand Alone, TR-069 (VigorACS), Vigor Router APM |
| Tools | Speed Test, AP Discovery, Statistics |
| Syslog | |
| SNMP | v2, v2c, v3 |
| Managed by VigorConnect | |
| Managed by VigorACS | |
| Physical | |
| Environment | Indoor |
| Mounting | Ceiling Mount / Wall Mount |
| Power Method | DC 12V @1A / 802.3af PoE |
| Max. Power Consumption | 10 watts |
| Dimension | 176.1mm x 176.1mm x 34.5mm |
| Weight | 300g |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 10 to 90% non-condensing |
| Certificate |   |
All specifications are subject to change without notice.
