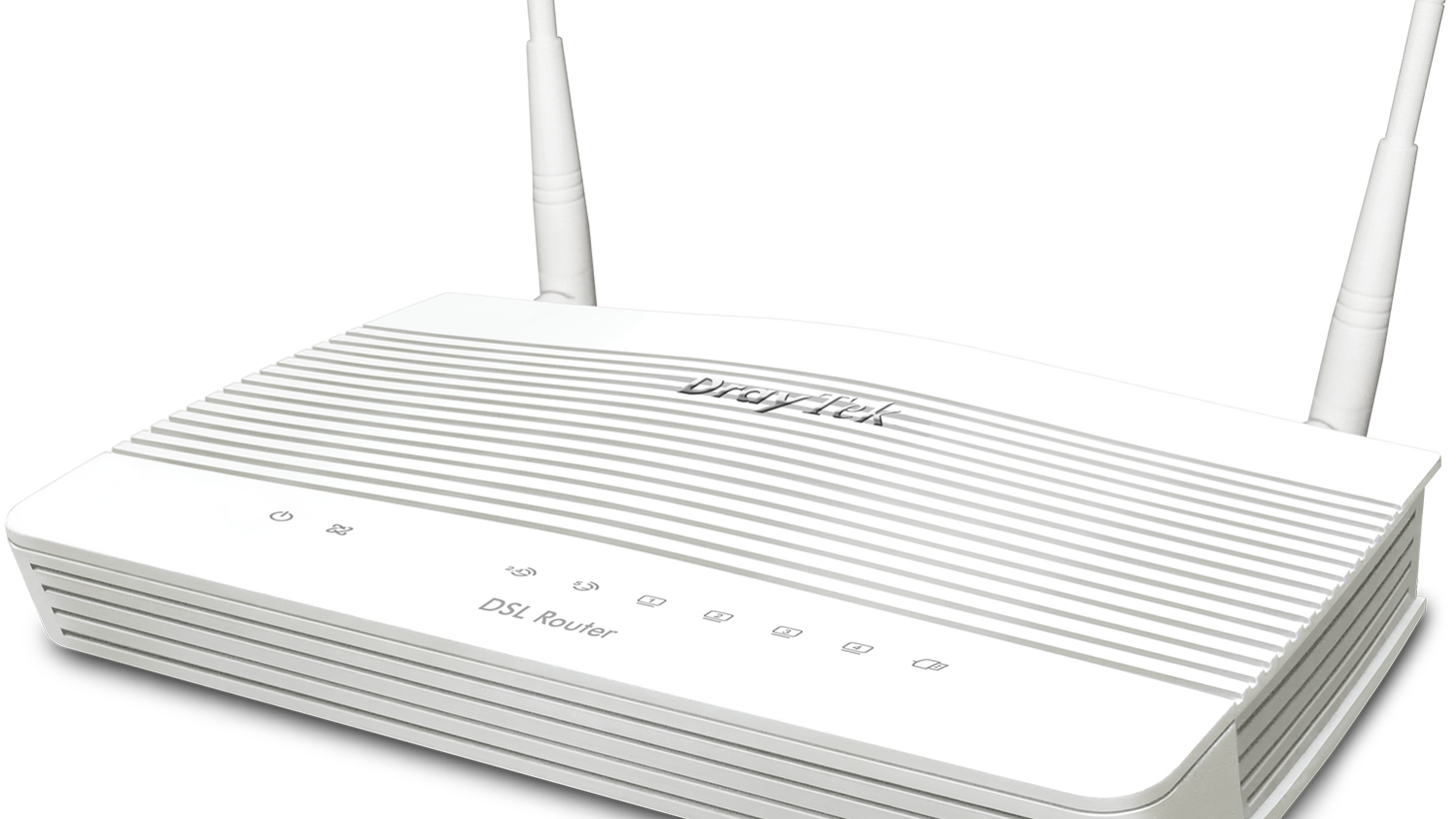

Vigor2763 Series

VDSL2/ADSL2+ VPN Router

    Vigor2763 Series is a VDSL2/ADSL2+ modem, a firewall, and a VPN router. The router has 4x GbE LAN port, one of which is switchable to be a backup WAN interface. It’s highly configurable for an abundance of features including web content filtering, bandwidth limit, QoS and lots more. The series includes models with built-in 11ac Wave 2 WiFi.

    • 100 Mbps

      NAT Throughput on VDSL2 30A

    • 400 Mbps

      NAT Throughput on Ethernet WAN

    • 150 Mbps

      IPsec Throughput

    • 50k Sessions

      Recommended for a network of 30 hosts

    1. WLAN/WPS Button (ac model)
    2. Reset Button
    3. 2x USB 2.0
    1. LAN/WAN Switchable Port: 1x GbE RJ-45
    2. Fixed LAN Port: 3x GbE RJ-45
    3. 1x RJ-11 for VDSL2/ADSL2+
    1. Power On/Off Switch
    2. Power Input
    3. Wireless Antenna (ac model)

    Key Features

    • null

      Integrated VDSL2 Modem

      Vigor2763 Series provides DSL WAN interface and built-in VDSL modem with ADSL2/2+ fallback.

    • null

      VPN (Virtual Private Network)

      Build a secure and private tunnel from the LAN of Vigor2763 Series to the remote offices and teleworkers over the Internet. Learn more

    • null

      VPN Matcher

      Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more

    • null

      SSL VPN

      The VPN works through firewalls providing secure remote access to any network environment. Learn more

    • null

      Bandwidth Management

      Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

    • null

      DrayDDNS

      The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    • null

      Firewall & Content Filter

      Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

    • null

      Hotspot Web Portal

      Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

    • null

      Central AP Management

      Use the Vigor2766 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more

    • null

      Mesh (Wireless model only)

      Easily link to other VigorAP to expand the wireless network. Learn more

    Model 2.4GHz WLAN 5GHz WLAN Wireless Antenna Wireless Mode Max. Link Rate Max. Bandwidth WDS Mesh
    Vigor2763
    Vigor2763ac 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n, 5 GHz: 802.11 a/n/ac 2.4 GHz: 400 Mbps, 5 GHz: 867 Mbps 80 MHz 5GHz Only 5GHz Only
    Interface
    Fixed WAN Port 1x RJ-11 for VDSL2 or ADSL2/2+
    LAN/WAN Switchable Port 1x 10/100/1000Base-T, RJ-45 (P4)
    Fixed LAN Port 3x 10/100/1000Base-T, RJ-45
    USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    WiFi Antenna 2x External Dipole
    Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
    (ac model)
    2.4G WLAN 802.11n 2×2 MIMO
    Up to 400Mbps Link Rate
    (ac model)
    5G WLAN 802.11ac Wave 2 2×2 MU-MIMO
    Up to 867Mbps Link Rate
    (ac model)
    Performance
    Max. Throughput on VDSL 100 Mbps
    NAT Throughput 400 Mbps
    NAT Throughput w/ Hardware Acceleration 940 Mbps
    IPsec VPN Performance 150 Mbps (AES 256 bits)
    SSL VPN Performance 100 Mbps
    Max. Number of NAT Sessions 50,000
    Max. Concurrent VPN Tunnels 2
    DSL
    VDSL Standards ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
    VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
    VDSL Band Plan 997
    G.INP
    G.Vectoring
    ADSL Standards ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
    ADSL2 Standards ITU-T G.992.3, G.992.3 Annex M/J
    ADSL2+ Standards ITU-T G.992.5, G.992.5 Annex M/J
    DSL Forum WT-114, TR-048/67, TR-100
    Internet Connection
    IPv4 PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    Multi-VLAN/PVC
    WAN Failover
    Connection Detection ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 8
    Number of LAN Subnet 4
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    DNS Security (DNSSEC)
    IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
    SMB File Sharing (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
    User Authentication Local, RADIUS, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES128, AES192, AES256
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritization
    Wireless LAN (ac model)
    Number of SSID 4 per radio
    Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
    Authentication Pre-Shared Key, 802.1X
    WPS PIN, PBC
    WDS Repeater (5GHz only)
    Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
    AirTime Fairness
    Band Steering
    MU-MIMO (5GHz Only) (ac model)
    WMM
    Management
    Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import
    Config File Compatibility Vigor2760, Vigor2762, Vigor2765, Vigor2766
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    Netflow (v5, v9, IPFIX)
    SNMP v1, v2c, v3
    Syslog
    Central AP Management 2 VigorAP
    Mesh Network 7 VigorAP (ac model)
    Physical
    Power Supply DC 12V @ 1.6A (ac model)
    Max. Power Consumption 19 watts (ac model)
    Dimension 207mm x 131mm x 39mm
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
    Certificate CE

    All specifications are subject to change without notice.

    Management Solution

    All-in-One Management

    • Discovery
    • Provisioning
    • Monitoring
    • Centralized Hierarchy View



    • Auto-Discovery
    • Auto-Provisioning
    • Monitoring
    • Centralized View
    • Alarm
    • Reboot VigorAP Remotely
    • Wi-Fi Client Load Balancing

    In-the-Box

    Vigor2763

    Antenna x 2
    (ac model)

    RJ-11 to RJ-11 Cable
    (DSL)

    RJ-45 Cable
    (Ethernet)

    Power Adapter

    Quick Start Guide
