Vigor2766 Series

G.fast VPN Router

    G.Fast Router for Professionals

    Vigor2766 Series has one G.fast supported DSL WAN, delivering fiber-like link rate up to 1 Gbps, and one configurable Ethernet WAN for backup. The built-in DSL modem is backward compatible with VDSL2 profile 35b supervectoring and ADSL2+. Featuring VPN, QoS, route policy, firewall, content filtering, bandwidth management, captive hotspot portal, and a lot more, Vigor2766 Series is perfect for tech-savvies who would like to take full control of the network. The series includes models with built-in 11ac Wave 2 WiFi.

    • G.Fast

      Download link rate up to 1 Gbps

    • 600 Mbps

      Max. NAT Throughput

    • 2 VPN

      Support IKEv2, SSL VPN, and OpenVPN

    • 50k Sessions

      Recommended for a network of 30 hosts

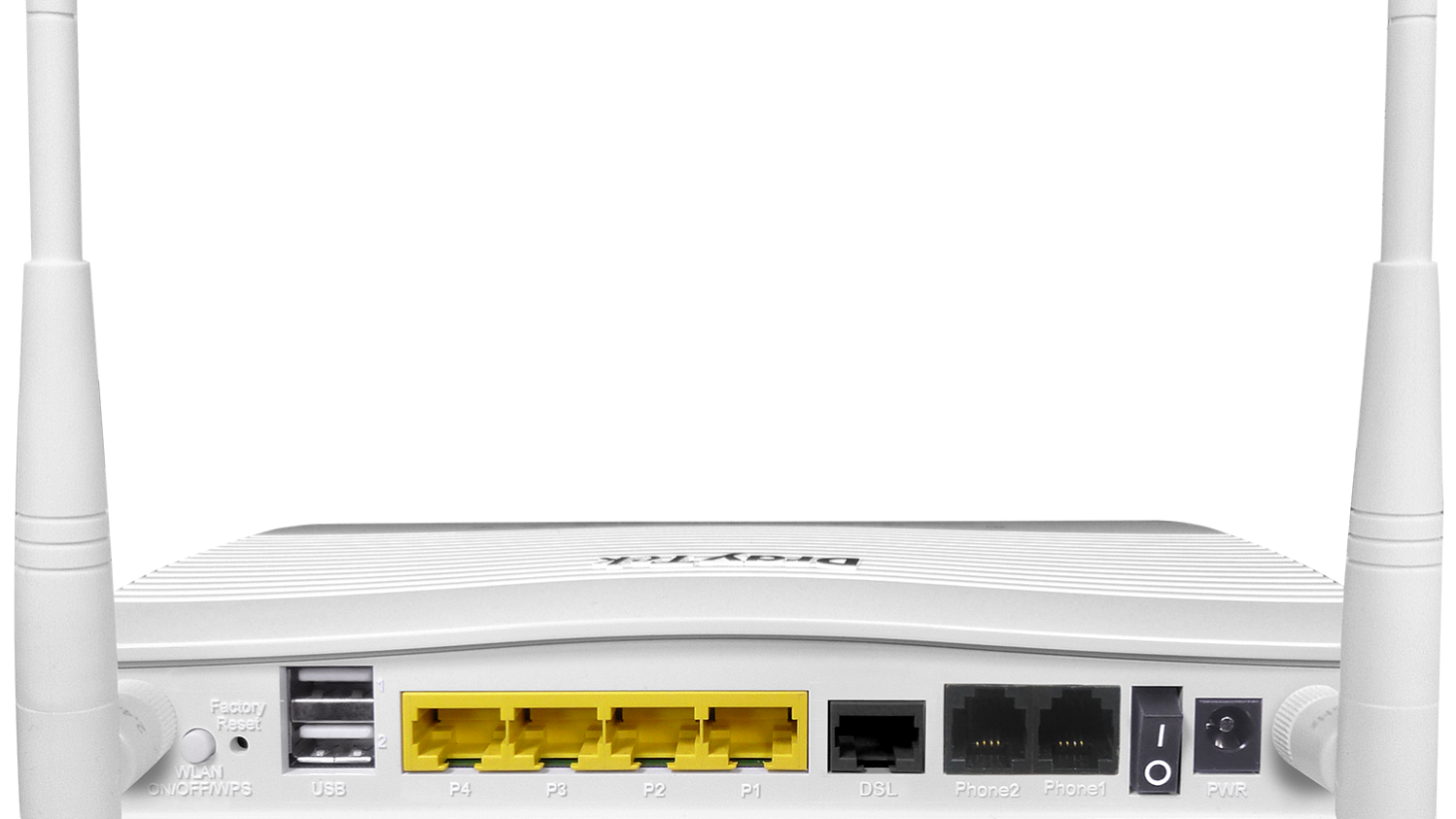

    1. WLAN/WPS Button (ac model)
    2. Reset Button
    3. 2x USB 2.0
    4. LAN/WAN Switchable Port: 1x GbE RJ-45
    1. Fixed LAN Port: 3x GbE RJ-45
    2. 1x RJ-11 for G.fast/VDSL2 35b/ADSL2+
    3. 2x FXS for VoIP (V model)
    4. Power On/Off Switch
    1. Power Input
    2. Wireless Antenna (ac model)

    Key Features

    • null

      G.fast Modem

      Integrated VDSL modem, supporting G.fast to deliver fiber-like DSL speed.

    • null

      VPN (Virtual Private Network)

      Build a secure and private tunnel from the LAN of Vigor2766 Series to the remote offices and teleworkers over the Internet. Learn more

    • null

      VPN Matcher

      Helps routers behind NAT to find each other and establish a LAN-to-LAN VPN. Learn more

    • null

      Bandwidth Management

      Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.

    • null

      VoIP Friendly

      Vigor2766 Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless. Setup Guide

    • null

      DrayDDNS

      The free DDNS service for you to access the router by a fixed hostname of your choice. Learn more

    • null

      Firewall & Content Filter

      Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.

    • null

      Hotspot Web Portal

      Market your business and communicate with the guests while offering hospitality Wi-Fi. Learn more

    • null

      Central AP Management

      Use the Vigor2766 Series router as a wireless controller to maintain and monitor the VigorAPs. Learn more

    • null

      Mesh (Wireless model only)

      Easily link to other VigorAP to expand the wireless network. Learn more

    Model 2.4GHz Wi-Fi 5GHz Wi-Fi Wireless Antenna Wireless Mode Max. Link Rate Max. Bandwidth
    Vigor2766
    Vigor2766ac 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n5 GHz: 802.11 a/n/ac 2.4 GHz: 400 Mbps5 GHz: 867 Mbps 80 MHz
    Vigor2766Vac 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) 2.4 GHz: 802.11b/g/n5 GHz: 802.11 a/n/ac 2.4 GHz: 400 Mbps5 GHz: 867 Mbps 80 MHz
    Interface
    Fixed WAN Port 1x RJ-11 for G.fast/VDSL2 35b/ADSL2+
    LAN/WAN Switchable Port 1x 10/100/1000Base-T, RJ-45 (P4)
    Fixed LAN Port 3x 10/100/1000Base-T, RJ-45
    USB Port 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
    Wi-Fi Antenna 2x External Dipole
    Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
    (ac model)
    2.4G WLAN 802.11n 2×2 MIMO
    Up to 400Mbps Link Rate
    (ac model)
    5G WLAN 802.11ac Wave 2 2×2 MU-MIMO
    Up to 867Mbps Link Rate
    (ac model)
    FXS RJ-11 2 (V model)
    Performance
    Max. Throughput on G.fast 1 Gbps
    Max. Throughput on VDSL 300 Mbps
    NAT Throughput 600 Mbps
    NAT Throughput w/ Hardware Acceleration 940 Mbps
    IPsec VPN Performance 200 Mbps (AES 256 bits)
    SSL VPN Performance 80 Mbps
    Max. Number of NAT Sessions 50,000
    Max. Concurrent VPN Tunnels 2
    DSL
    VDSL Standards ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b but excluding 30a)
    T1.424
    ITU-T G.993.5 (Vectoring)
    VDSL2 Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b
    G.fast Profile 106Mhz, 212Mhz
    ADSL Standards ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2
    Other Standards ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission)
    Band Plan 998, 997
    Internet Connection
    IPv4 PPPoE, PPPoA, DHCP, Static IP, MPoA, PPTP/L2TP
    IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    Multi-VLAN/PVC
    WAN Failover
    Connection Detection ARP, Ping
    WAN Data Budget
    Dynamic DNS
    DrayDDNS
    LAN Management
    VLAN 802.1q Tag-based, Port-based
    Max. Number of VLAN 8
    Number of LAN Subnet 4
    DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
    Wired 802.1x Authentication
    Port Mirroring
    Local DNS Server
    Conditional DNS Forwarding
    Hotspot Web Portal
    Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
    Networking
    Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
    Policy-based Routing Protocol, IP Address, Port, Domain, Country
    DNS Security (DNSSEC)
    IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
    SMB File Sharing (Requires external storage)
    VPN
    LAN-to-LAN
    Teleworker-to-LAN
    Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
    User Authentication Local, RADIUS, mOTP
    IKE Authentication Pre-Shared Key, X.509
    IPsec Authentication SHA-1, SHA-256, MD5
    Encryption MPPE, DES, 3DES, AES128, AES192, AES256
    Single-Armed VPN
    NAT-Traversal (NAT-T)
    DrayTek VPN Matcher
    Firewall & Content Filtering
    NAT Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
    ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
    VPN Pass-Through PPTP, L2TP, IPsec
    IP-based Firewall Policy
    Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
    DoS Attack Defense
    Spoofing Defense
    Bandwidth Management
    IP-based Bandwidth Limit
    IP-based Session Limit
    QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Port, Application
    VoIP Prioritization
    Wireless LAN (ac model)
    Number of SSID 4 per radio
    Security Mode OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
    Authentication Pre-Shared Key, 802.1X
    WPS PIN, PBC
    WDS Repeater (5GHz only)
    Access Control Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
    AirTime Fairness
    Band Steering
    MU-MIMO (5GHz Only) (ac model)
    WMM
    VoIP Gateway (V model)
    Protocol SIP, RTP/RTCP, ZRTP
    SIP Registrars 6
    Dial Plan Phone Book, Digit Map, Call Barring, Regional
    Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
    Voice Codec G.711 A/u law, G.726, G.729 A/B
    Caller ID FSK_ETSI, FSK_BELLCORE, DTMF
    Management
    Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
    Config File Export & Import
    Config File Compatibility Vigor2760, Vigor2762, Vigor2765
    Firmware Upgrade TFTP, HTTP, TR-069
    2-Level Administration Privilege
    Access Control Access List, Brute Force Protection
    Notification Alert SMS, E-mail
    Netflow (v5, v9, IPFIX)
    SNMP v1, v2c, v3
    Syslog
    Managed by VigorACS
    Central AP Management 2 VigorAP
    Mesh Network 7 VigorAP (ac model)
    Physical
    Power Supply DC 12V @ 1.5A-2A
    Max. Power Consumption 21.6 watts (Vac model)
    Dimension 207mm x 131mm x 42mm
    Weight 540g (Vac model)
    Operating Temperature 0 to 45°C
    Storage Temperature -25 to 70°C
    Operating Humidity (non-condensing) 10 to 90%
    Certificate CE
    FCC

    All specifications are subject to change without notice.

    Management Solution

    All-in-One Management

    • Discovery
    • Provisioning
    • Monitoring
    • Centralized Hierarchy View



    • Auto-Discovery
    • Auto-Provisioning
    • Monitoring
    • Centralized View
    • Alarm
    • Reboot VigorAP Remotely
    • Wi-Fi Client Load Balancing

    Software Management



    • Provisioning
    • Monitoring
    • Centralized Hierarchy View
    • Alarm
    • Reboot Vigor Devices Remotely
    • Scheduled Maintenance
    • Report

    • Zero Touch Deployment & Provisioning
    • Auto VPN
    • Interface Quality & SLA
    • VoIP Optimization & Monitoring
    • Application Visibility
    • Customized Hotspot Page with Multilingual
    • Hotspot Clients Analytics
    • ACS Server Load Balancing / Failover

    In-the-Box

    Vigor2766

    Antenna x 2
    (ac model)

    RJ-11 to RJ-11 Cable
    (Annex A)

    RJ-45 Cable
    (Ethernet)

    Power Adapter

    Quick Start Guide
