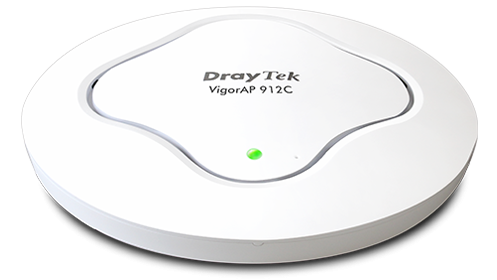

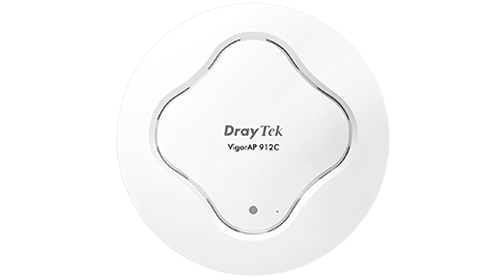

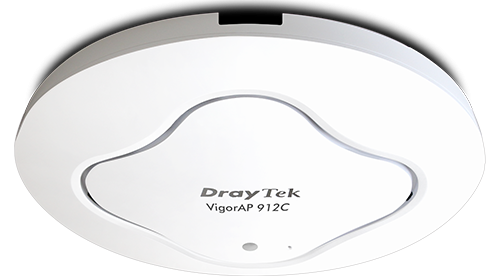

VigorAP 912C

11ac Dual-Band Ceiling-Mount Wireless AP
  1. Capacity of up to 256 concurrent active users
  2. Supports MU-MIMO for high density applications
  3. Delivers AC1200 Dua-Band WiFi
  4. 1 PoE Gigabit RJ-45 LAN Port
  5. 8 SSIDs (4 Per Radio, support 802.1q VLAN)

OVERVIEW

VigorAP 912C is a ceiling-mount Wi-Fi for business networks. It has a capacity of up to 256 concurrent active users, ideal for a high-density environment such as a BYOD workplace. The low-profile appearance and PoE power supply provide the flexibility in deployment.

  • AC1200

    Delivers 867 Mbps at 5GHz,
    300 Mbps at 2.4GHz

  • 256 Active Users

    At Maximum,
    128 Per Radio

  • 1 PoE LAN Port

    10/100/1000M
    Base-T RJ-45

  • 8 SSIDs

    4 Per Radio,
    support 802.1q VLAN

Key Features

  • null

    Mesh

    Easily link to other VigorAP to expand the wireless network.

  • null

    PoE Power Supply

    Simplify the infrastructure by getting data and power through a single cable.

  • null

    Multiple SSID

    Mapping Wi-Fi clients to different VLANs and have a different set of security standards.

  • null

    Airtime Fairness

    Equalize the transmission time of each client so the legacy devices won’t slow everyone down.

  • null

    Band Steering

    Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.

  • null

    Assisted Wi-Fi Roaming

    Solve the sticky client problem and improve Wi-Fi roaming experience.

  • null

    Wi-Fi Scheduling

    Schedule Wi-Fi On and Off to control wireless access and save energy.

  • null

    Local RADIUS Server

    User profile database for local and external 802.1x authentication.

  • null

    Central AP Management

    Manage, maintain, and monitor VigorAP 912C from the DrayTek routers.

11ac Wave 2 Technology

VigorAP 912C supports MU-MIMO for high density applications

SPECIFICATIONS

Interface
LAN Port 1x 10/100/1000M Base-T, RJ-45, supports 802.3af PoE
Antenna 2x Internal Dual-Band PiFA Antenna
Gain: 5 dBi for 5GHz, 3 dBi for 2.4GHz
DC Power Jack 1
Factory Reset Button 1
Security Lock 1
Capacity
2.4GHz Peak Speed 300 Mbps
5GHz Peak Speed 867 Mbps
Max. Number of Concurrent Active Clients 256 (128 per radio band)
WLAN
2.4GHz Standard IEEE 802.11b/g/n 2×2 MIMO
5GHz Standard IEEE 802.11a/n/ac wave 2 2×2 MU-MIMO
Operating Mode AP, Mesh Root, Mesh Node, Range Extender
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID 8 (4 per radio band)
WDS
Bandwidth Limit per Client
Client Number Limit Per radio, Per SSID
Connection Time Control
WMM
Security
Security Mode WEP, WPA, WPA2, WPA3-Personal, Mixed(WPA+WPA2)
Authentication Pre-Shared Key, 802.1X
WPS PIN, PBC
Hidden SSIDs
MAC Address Filter Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Application
Built-in RADIUS Server
RADIUS Proxy PEAP, EAP-TLS
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor
Configuration Backup and Restore
Notification Alert E-mail
SNMP v2, v2c, v3
Syslog
Managed by VigorConnect
Physical
Environment Indoor
Mounting Ceiling Mount / Wall Mount
Power Method DC 12V @1A / 802.3af PoE
Max. Power Consumption 10 watts
Dimension 176mm x 176mm x 30mm
Weight 307 g
Operating Temperature 0 to 45°C
Storage Temperature -20 to 60°C
Operating Humidity 10 to 90% non-condensing
  • All specifications are subject to change without notice.
  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
