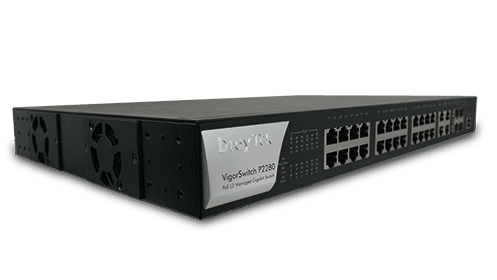

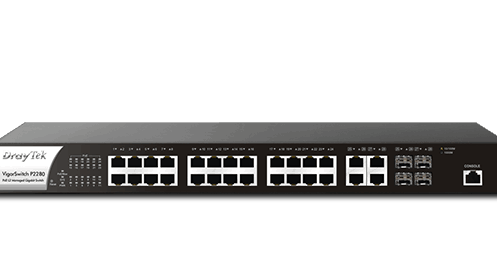

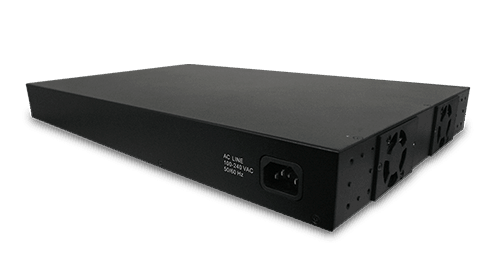

DrayTek VigorSwitch P2280 is a Layer 2 Managed Gigabit PoE switch. It has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 385 watts. It also equipped with 4x GbE/SFP combo ports, 1x console port, and enterprise-level features to help businesses to improve network security and stability.
24x PoE/PoE+
10/100/1000Mbps Ethernet, RJ-45
4x GbE/SFP
Gigabit Ethernet, RJ-45/SFP Combo
385 watts
of PoE Power Budget
56 Gbps
Switching Capacity
Key Features
PoE (Power over Ethernet)
Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.
PoE Device Check
Enable Ping Watchdog for all PoE devices, if they lose their network connection, automatically restart them by a power cycle.
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Access Control
VigorSwitch P2280 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
IPv6 Ready
VigorSwitch P2280 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. See demo
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Web InterfaceHTTP, HTTPS
| Interface | |
|---|---|
| LAN Port | 24x 10/100/1000Mbps Ethernet, RJ-45 4x Gigabit Ethernet, RJ-45/SFP Combo |
| Console Port | 1x Gigabit Ethernet, RJ-45 |
| Button | 1x Factory Reset Button |
| PoE | |
| PoE/PoE+ (802.3af/802.3at) Port | 24 |
| PoE Power Budget | 385 watts |
| Power Limit |  |
| Scheduled On/Off | |
| Power Cycle on Port | Manual, Ping Watchdog |
| Capacity | |
| Buffer Size | 4.1 Mbit |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps (64 bytes) |
| MAC Address Table | 8k |
| Jumbo Frame | Up to 9KB |
| Networking Standards | |
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3af PoE 802.3at PoE+ 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T IEEE802.3ae 10GBase-X 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
| VLAN | |
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| Port Isolation | |
| GVRP | |
| Q-in-Q | Basic |
| ONVIF Surveillance | |
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
| QoS | |
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | |
| Security | |
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | |
| 802.1x Port Access Control | |
| IP Source Guard | |
| IP Conflict Prevention | |
| Loop Protection | |
| Dynamic ARP Inspection | |
| DHCP Snooping with Option 82 | |
| Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC, IP/MAC |
| Multicast | |
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | v2, v3 (BISS) |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Group Throttling | |
| Group Filtering | |
| MVR (Multicast VLAN Registration) | |
| Management | |
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP, LLDP-MED |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict |
| Syslog | |
| 2-Level Admin Privilege | |
| Multiple Admin Accounts | |
| Managed by Vigor Router SWM | |
| Managed by VigorACS 2 | |
| Config File Export/Import | |
| Dual Image | |
| SNTP (Simple Network Time Protocol) | |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
| Physical | |
| 19-inch Rack Mountable | Mouting Kit Included |
| Max. Power Consumption | 453.3 watts |
| Dimension (mm) | 441(W) x 270(D) x 45(H) |
| Weight | 4.3 kg (9.0 lb) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |  |
All specifications are subject to change without notice.
